Nextiva Contact Center: Outbound Dialer Configuration

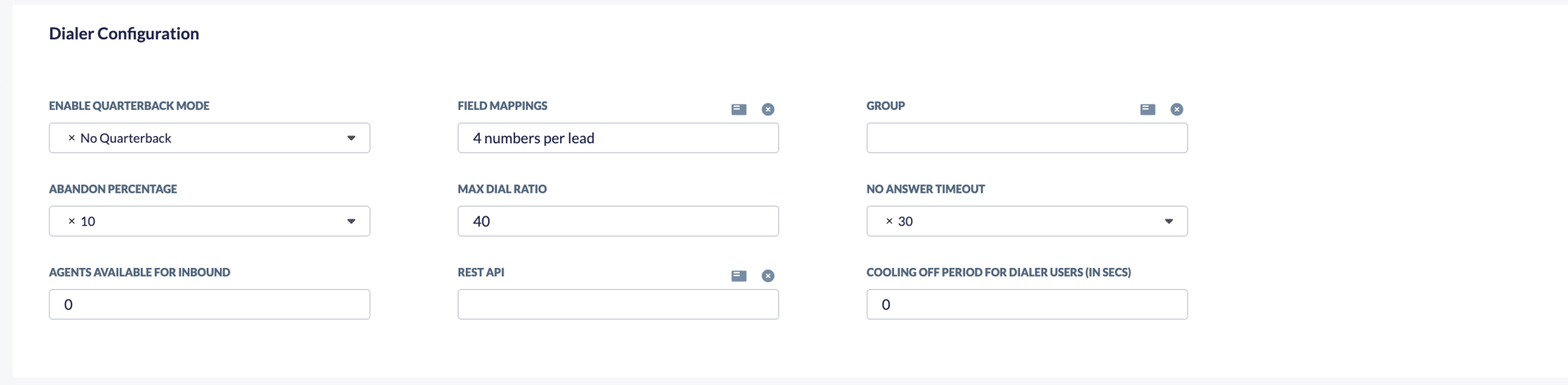

Enable Quarterback Mode

Select if you want:

• No Quarterback – The system will detect when an agent is available and dial without human intervention. An agent has to be logged into the campaign and available and the dialer will dial for that person.
• Quarterback Agent – The agent will be presented with a series of pop-up offers they have to accept before the dialer dials out. An agent has to be logged into the campaign and available and the dialer will dial for that person.
• Quarterback Application –There’s a dedicated separate user called a quarterback who is logged in and available. When there are agents available, the quarterback has to accept the offers on behalf of the agents. After accepting the offers the system will dial for the agents.

Group

Optional. The group of users to be assigned to the campaign. If you want to force agents to dial for a certain campaign, assign them to a group, and assign that group to a campaign. When an agent logs into outbound dialing, they will be automatically assigned to the campaign the group is assigned to. If assigned to a group and Allow Campaign Selection in the Outbound tab isn’t enabled in the agent’s user profile, the agent can only login to the campaign that the group they’re a part of is assigned to.

Max Dial Ratio

The maximum number of calls the system can make per agent.

Agents Available for Inbound

The amount of agents in the campaign that should be available for an inbound call. If set to 0, no agents will be reserved for inbound calls. If set to more than 0, that number of agents will be reserved for inbound calls.

Field Mappings

Click the list icon to select the field mapping created to use for outbound dialing. Click OK to use the field mapping.

Abandon Percentage

Dialer setting of the calls that were answered but were dropped instead of being sent to an agent because no agent was available. When the percentage is reached, the dialer slows down.

No Answer Timeout

How long Nextiva will let the phone ring before considering an attempt on a lead as No Answer and dialing the next number on the list.

REST API

You can select a REST API to be called when a call gets connected.

Cooling Off Period For Dialer Users (In Secs)

The number of seconds between the calls the system will wait, after agents finish wrap-up before dialing again.

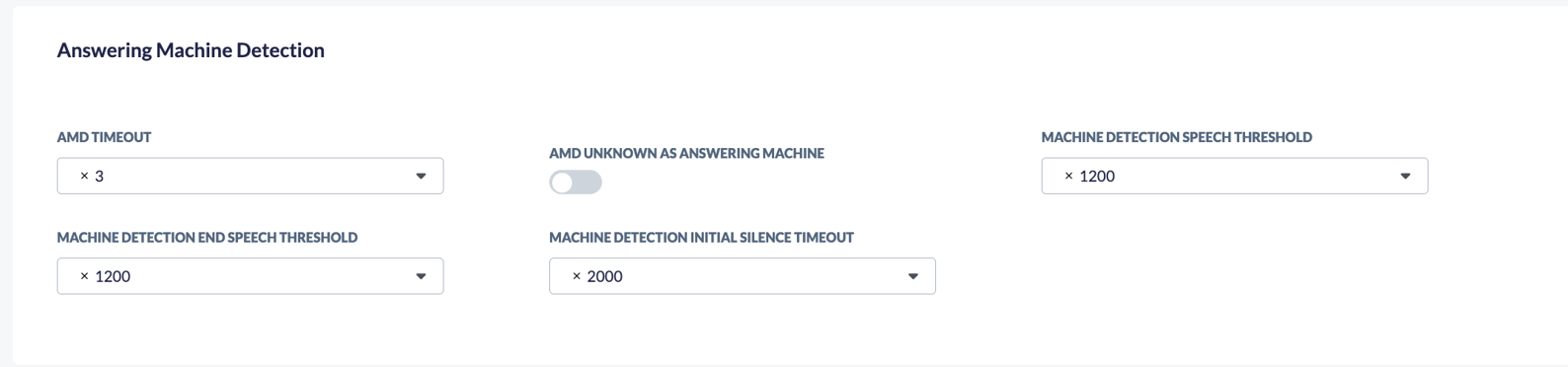

AMD Timeout

The amount of time you are giving the system to detect if it’s a human or an answering machine answering the call.

Machine Detection End Speech Threshold

The number of milliseconds before the called party stopped speaking.

AMD Unknown as Answering Machine

If enabled, and the system can’t detect a human vs an answering machine in the timeout, it will say it’s an answering machine.

Machine Detection Initial Silence Timeout

The number of milliseconds before the called party started speaking.

Machine Detection Speech Threshold

The number of milliseconds the called party spoke before stopping.

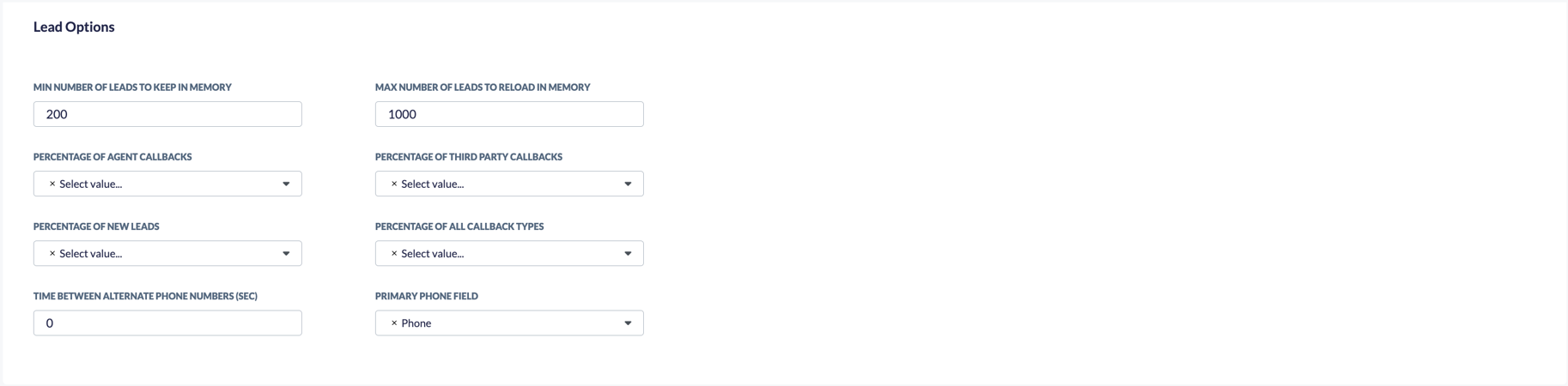

Min number of leads in memory

The minimum number of leads to keep in memory, so the dialer doesn’t have to keep loading new leads from the database.

Max number of leads in memory

The maximum number of leads to keep in memory. If changes are made, the changes will only go into effect when the list is reloaded.

Percentage of Agent Callbacks

The number of calls where an agent received the calls and scheduled a callback.

Percentage of Third Party Callbacks

The percentage of callbacks with third party skills.

Percentage of New Leads

The percentage of new leads.

Percentage of All Callback Types

The percentage of all callback types.

Time Between Alternate Phone Numbers (sec)

If a lead has more than one phone number associated with their record,  you can specify the amount of time before dialing an additional phone number.

Primary Phone Field

The primary phone number to be used when dialing leads.

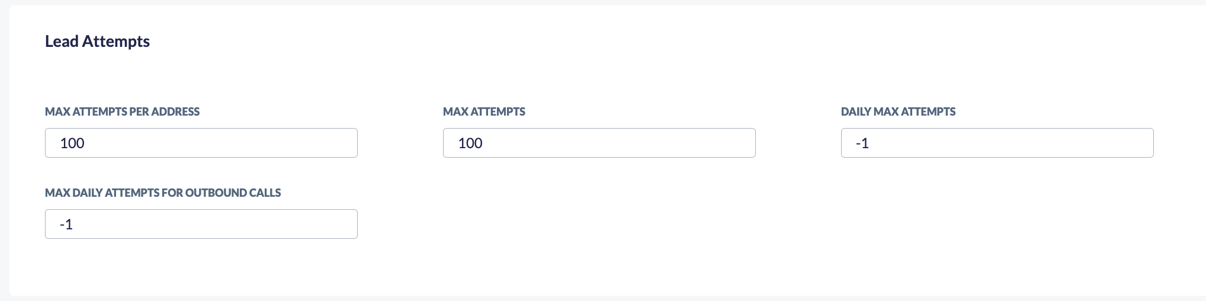

Max Attempts per Address

The max attempts per phone number.

Daily Max Attempts

The daily max attempts for the dialer for each lead.

Max Attempts

The total number of attempts irrelevant of address. 0 or less means this functionality is not enabled, any value over 0 will cause it to take effect.

Delay For

When the Daily Max Attempts is reached, how long before the dialer attempts again.

Max Daily Attempts for Outbound Calls

The max daily attempts for manually outbound dialed calls.

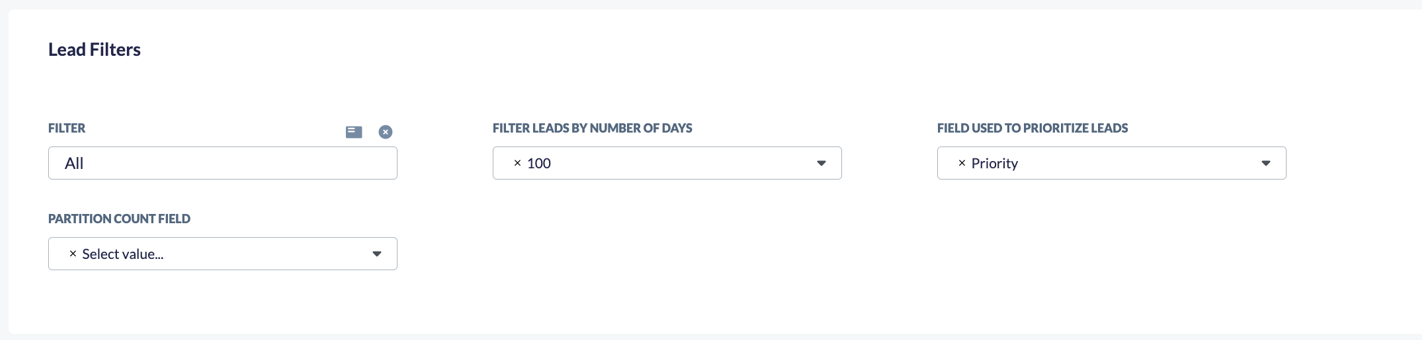

Filter

The tab to select the filter used for the campaign in order to decide which leads should be called. For example, you can create a filter for California that contains all the California prefixes and assign it to a campaign so then the system would only call California numbers.

Field used to Prioritize Leads

Optional. If you want to prioritize leads, the priority must exist on the list that you upload. There needs to be a priority assigned to each of the leads in a field on the list. That field must be associated with the Field mapping. You then assign that field in the outbound campaign so the system knows which field to access to prioritize the leads.

Filter Leads by Number of Days

When you select the number of days the system will filter out any leads that were uploaded prior to the number of days selected.

Partition Count Field

Using a field that’s in the uploaded list for example, you might use the State field, state=CA. If state = CA, then Nextiva partition field count = 100. Nextiva will only load 100 leads that have CA in the State field at a time.

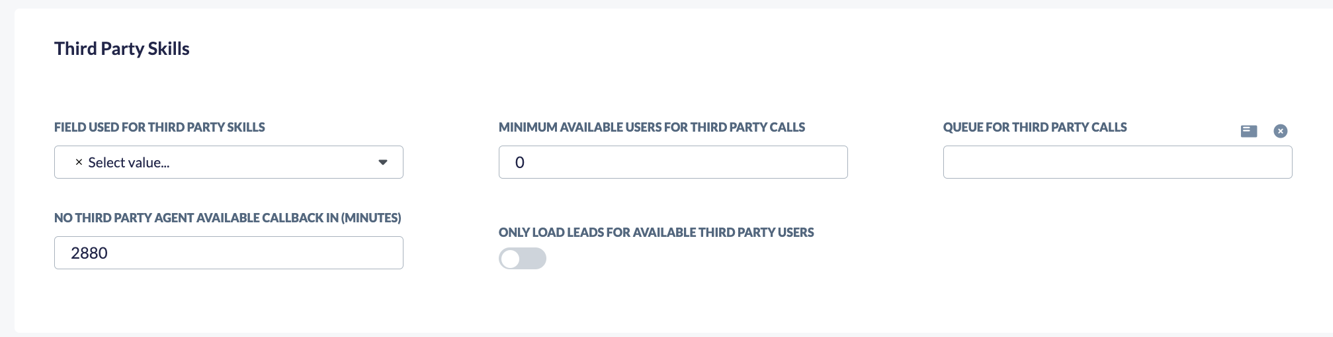

Field used for Third Party Skills

A field to determine the criteria to apply the Third Party Skill. The values of this field should also match a defined Skill in Nextiva. That defined skill must be assigned to agents.

No Third Party Agent Available Callback in (Minutes)

After what duration in minutes, should the dialer attempt to load the lead again when there are no available agents.

Minimum Available users for Third Party calls

The minimum number of agents with the Third Party Skill that must be available in order for the dialer to dial. Only when there’s more than the set number of available agents will the dialer begin dialing. This is to preserve agents available for inbound if the agents are taking inbound and dialer calls.

Queue for Third Party Skills

Select the queue as well as the skill required for the third party calls, the third-party agent available must have the skill and be a part of the queue.

Only Load Leads for Available Third Party Users

Enable if you don’t want to load any leads into memory for third party skill unless there is at least one available agent with that skill.

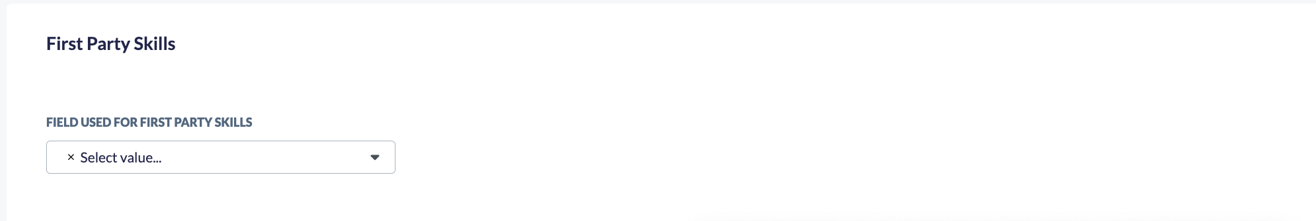

Field used for First Party Skills

A field to determine the criteria to apply the First Party Skill. The values of this field should also match a defined Skill in Nextiva and the skill must be assigned to an agent who is logged in and available.

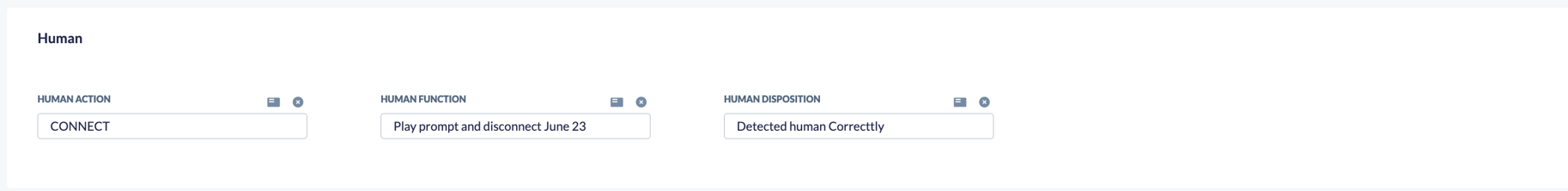

Human Action

The action to take when the dialer reaches a human. The options are:

• Connect
• Function

Human Function

The function to be used if the Human Action is set to Function.

Human Disposition

The disposition to be used after the dialer reaches a human.

NOTE: If the call is connected to an agent the disposition written to the database will be the disposition selected by the agent.

NOTE: Dispositions must be created.

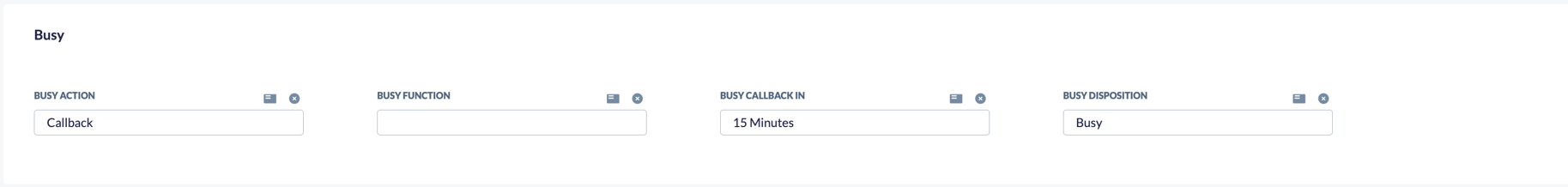

Busy Action

The action to take when the lead the dialer is attempting to reach is busy. The options are:

• Callback
• Function
• Remove From List

Callback

Will mark the record as having been called and will keep the record active on the list.

Busy Function

The function to be used if the Busy Action is set to Function.

Busy Callback In

When the dialer should attempt to call the lead back

Busy Disposition

The disposition to be used after the dialer reaches a busy lead.

NOTE: Dispositions must be created.

Remove From List

Will mark the lead as completed and remove the lead from the list.

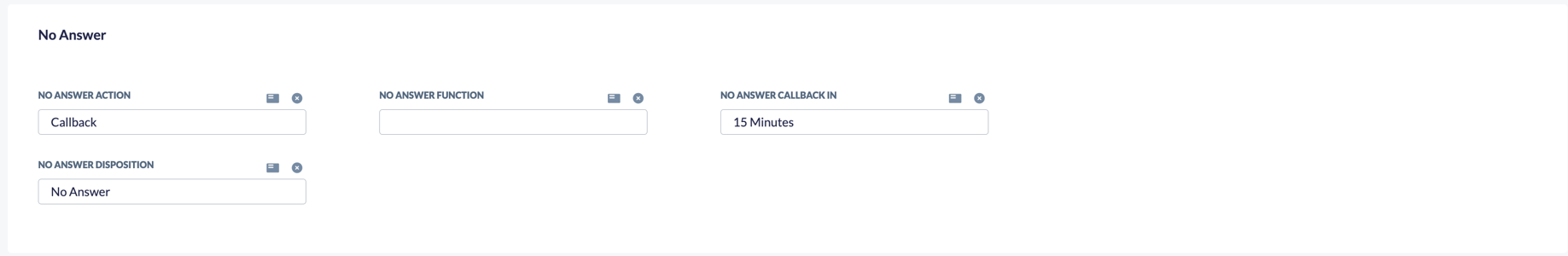

No Answer Action

The action to take when the lead the dialer is attempting to reach does not answer. The options are:

• Callback
• Function
• Remove From List

No Answer Function

The function to be used if the No Answer Action is set to Function.

Callback

Will mark the record as having been called and will keep the record active on the list.

No Answer Callback In

When the dialer should attempt to call the lead that did not answer back

No Answer Disposition

The disposition to be used after the dialer reaches a lead that did not answer. NOTE: Dispositions must be created.

Remove From List

Will mark the lead as completed and remove the lead from the list.

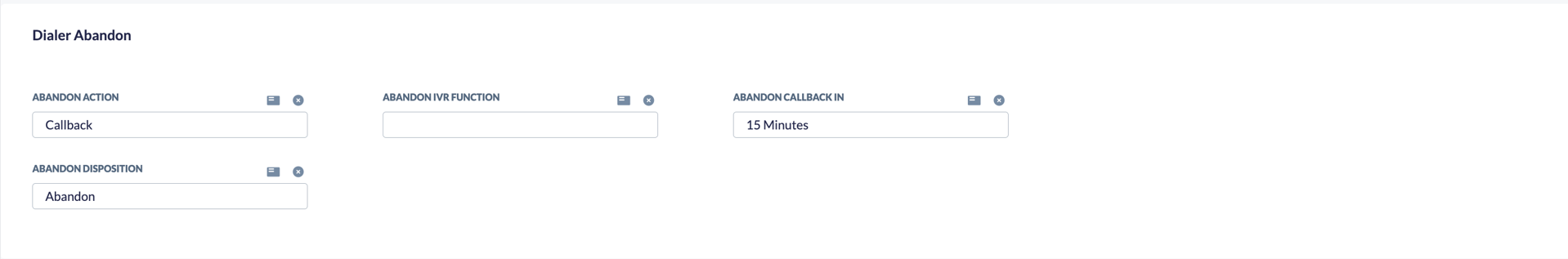

Abandon Action

The action to take when the lead the dialer abandons a call. The options are:

• Callback
• Function
• IVR Function & Callback
• IVR Function & Remove From List
• Remove From List

Abandon IVR Function

The function to be used if the Abandon Action is set to Function. E.g. Route them to a function that plays a message to the called party and asks them to select a digit in order to enter a queue.

Callback

Will mark the record as having been called and will keep the record active on the list.

IVR Function & Callback

The function if the Abandon Action is set to IVR Function & Callback. E.g. Play the called party a message and terminate and set a callback date in the future.

IVR Function & Remove From List

The function if the Abandon Action is set to IVR Function & Remove From List. E.g. Play the called party a message and terminate before marking the record as completed.

Abandon Callback In

When the dialer should attempt to call the lead that was abandoned.

Abandon Disposition

The disposition to be used after the dialer abandons a call.

NOTE: Dispositions must be created.

Remove From List

Will mark the lead as completed and remove the lead from the list.

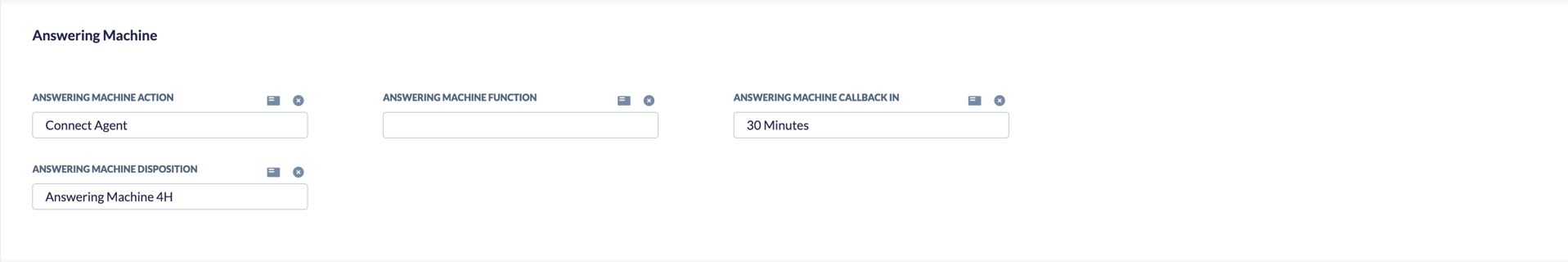

Answering Machine Action

The action to take when the lead the dialer reaches an Answering Machine. The options are:

• Callback
• Connect Agent
• Function
• Leave Message & Callback
• Leave Message & Remove From List
• Remove From List

Answering Machine Function

The function to be used if the Answering Machine Action is set to Answering Machine Function.

Callback

Will mark the record as having been called and will keep the record active on the list.

Answering Machine Callback In

When the dialer should attempt to call the lead, after reaching the lead’s answering machine.

Answering Machine Disposition

The disposition to be used after the dialer reaches an answering machine.

Connect Agent (radio button)

Will connect the call to an agent even if an answering machine is detected.

Leave Message & Callback

Needs to call a function that plays a message and will mark the record as having been called and will keep the record active on the list.

Leave Message & Remove From List

Needs to call a function that plays a message and will mark the lead as completed and remove the lead from the list.

Remove From List

Will mark the lead as completed and remove the lead from the list.

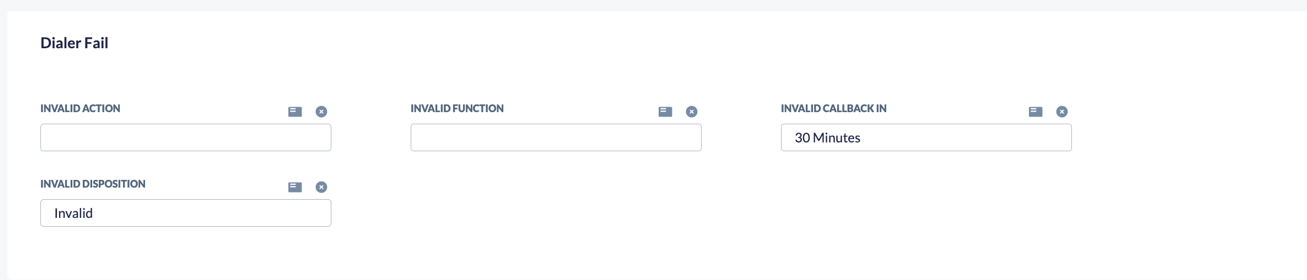

Invalid Action

The action to take when the lead the dialer fails to dial.

• Callback
• Function
• Remove From List

Invalid Function

The function to be used if the Invalid  Action is set to Invalid Function.

Callback

Will mark the record as having been called and will keep the record active on the list.

NOTE: If you have a high number of callback attempts, then the invalid numbers would be tried many times. In this case, best practice would be to call the Invalid Function that increments the lead attempts and marks the invalid calls as Remove From List after a certain number of tries. E.g. 3.

Invalid Callback In

When the dialer should attempt to call the lead, after failing to dial.

Invalid Disposition

The disposition to be used after the dialer fails to dial.

NOTE: Dispositions must be created.

Remove From List

Will mark the lead as completed and remove the lead from the list.

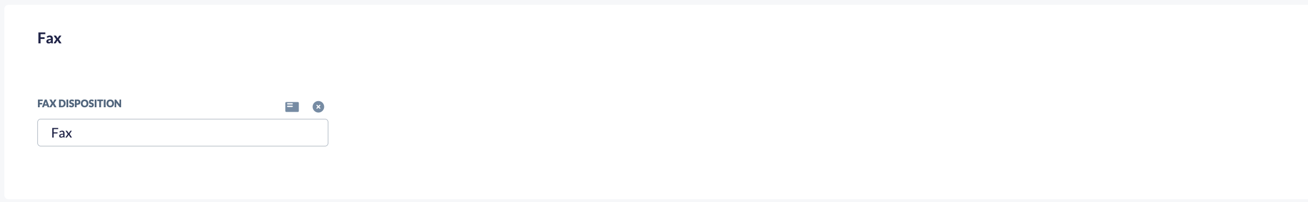

Fax Disposition

The disposition to be used when the dialer reaches a fax machine.

NOTE: Dispositions must be created.

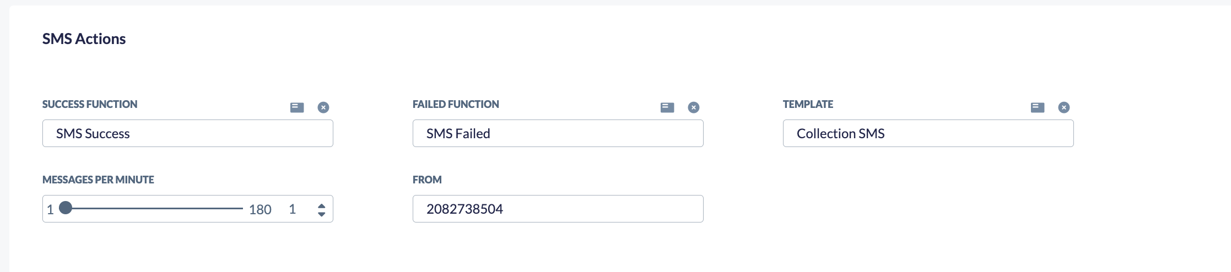

Success Function

The function that you’re calling when the SMS is sent successfully.

Template

The content of the template that you will send in the SMS. This could be text or text and a variable that resolves.

From

The number that you’re sending the SMS from.

Failed Function

The function that you’re calling when the SMS fails to send.

Messages per Minute

The maximum number of messages Nextiva will send per minute. If you choose to send 60 messages per minute, Nextiva will send one message every second. If you choose to send 120 messages, Nextiva will send two messages per second. If you choose 180 messages, Nextiva will send 3 messages per second.

NOTE: Nextiva rounds down so if you choose 119 messages per minute, Nextiva will send one message per second (60 per minute.) If you choose 120, Nextiva will send 2 messages per second (120 per minute).
